Pneumatic Actuator Driven Stainless Stell CF8 CF8M 2PC Screw Type Ball Valve
Product introductioin:
Ball valves are mainly used in pipelines to cut off, distribute, and change the flow direction of the medium. Ball valve can be with 1pc, 2pc and 3pc structure, all are widely used in water, oil and steam pipelines and control valve systems.
Ball valve can be driven by a pneumatic actuator, which has a relatively fast execution speed, with the fastest opening and closing speed of 0.05 seconds per time, so it is usually also called a pneumatic quick cut-off ball valve. Pneumatic ball valves are usually equipped with various accessories, such as solenoid valves, air source treatment triplets, limit switches, positioners, control boxes, etc., to achieve local control and remote centralized control. The valve can be controlled in the control room without the need to manually control it on site or in high-altitude and dangerous areas, which greatly saves human resources, time, and safety.
Product technical paratmeters:
| Diameter nominal DN(mm) |
15～50 |
| Pressure nominal PN(MPa) |
1.0～2.5 |
|
Pressure test
Ps (MPa)
|
Strength test (Water) |
1.5～3.75 |
| Sealing test (Water) |
1.1～2.75 |
| Medium applicable |
Water, steam,oil and weak corrosive mediums etc. |
| Connection way |
NPT, BSP, weldable |
Product features:
1. The pneumatic ball valves can work stably in various harsh environmental conditions. In addition, it can effectively prevent medium leakage due to its excellent sealing performance, to ensure the safety of operation.
2. Pneumatic ball valve with simple structure, lower friction coefficient and wear resistance, the service life of the valve is also very long.
3. The pneumatic ball valve can be remotely controlled through a control system, which is very important for automated production lines. Valves can be easily opened and closed through preset programs or manual operations.
|
|

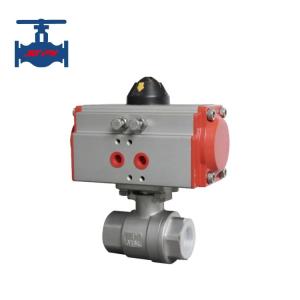

Stainless Steel CF8 CF8M Pneumatic Valve 2PC Screw Type Ball Valve Images
|
