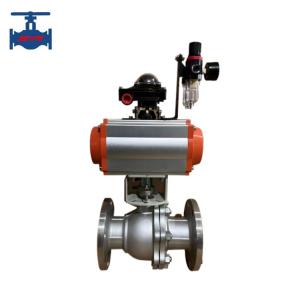

ANSI Pneumatic Actuator Driven Stainless Steel CF8, CF8M Flanged Ball Valve
Product introduction:
Pneumatic ball valve is a device that can control valve opening and closing using air or other gases. Its function is to control the flow rate in the pipeline, that is, to control the on/off and flow velocity of the pipeline by rotating the valve ball. Therefore, pneumatic ball valves are widely used in pipeline systems in industries such as petroleum, chemical, metallurgy, and water treatment.
Pneumatic ball valves are mainly used to control the flow direction, flow rate, pressure, and temperature of fluids such as liquids, gases, and solid particles. Its advantages include fast switching, reliable sealing, strong circulation capacity, long service life, easy maintenance, and simple structure.
Product technical parameters:
| Nominal Diameter DN (mm) |
15~200 |
| Nominal Pressure PN (MPa) |
150LB, 300LB |
| Pneumatic actuator type |
AT, GT double acting and single acting |
| Accessories |
Limited switch, positioner, solenoid valve etc. |
| Control method |
Normal close / normal open |
| Test Pressure (MPa) |
Strength (water) |
3.0 |
| Enclose (Water) |
2.2 |
| Main Components |
Body |
Stainless steel |
| Valve ball |
Stainless steel |
| Seat |
PTFE, PPL, Hard alloy |
| Stem |
Stainless steel |
| Working temperature |
≤300℃ |
| Medium suitable |
Water, steam, oil and weak corrosive mediums |
| Connection |
Flange connection |
Product features:
1. Quick switch: By controlling the air source, it is possible to achieve fast switching and improve operational efficiency.
2. Reliable sealing: Ball valves use sealing rings for sealing, which have good sealing performance and can effectively prevent fluid leakage.
3. Strong flow capacity: Ball valves have high flow capacity, low resistance, and stable fluid flow performance when passing through them, which can meet high flow requirements.
4. Long lifespan: Pneumatic ball valves have a simple structure, few components, corrosion resistance, wear resistance, and long lifespan.
5. Easy maintenance: Pneumatic ball valves have the characteristics of being detachable and maintainable, making maintenance and material replacement convenient.
